Details

• Product ID:

  421432

• Description:

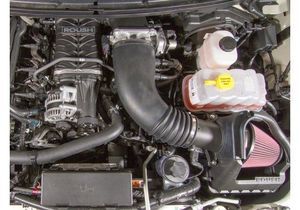

  2011-2014 6.2L Ford F-150 Supercharger ROUSH R2300 Phase 2 Kit - 590 HP:




  • Produces 590 horsepower and 590 lb-ft of torque (179hp gain and 156lb-ft gain over stock)
  • R2300 Supercharger featuring Eaton's new TVS Technology. The new Twin Vortices Series features four-lobe rotors with high-flow inlet and outlet ports that greatly enhance thermal efficiency, enabling greater volumetric capacity at higher revolutions per minute (RPM)
  • Fuel charging assembly with ROUSH designed upper and lower aluminum intake manifolds
  • High efficiency intercooler system featuring dual-core low temp radiator, degas bottle, high capacity air-to-water intercooler and formed hoses with abrasion-resistant sleeves
  • Twin 60mm throttle body and throttle body spacer
  • ROUSH cold air induction system featuring an injection-molded air box, blow-molded clean air tube and high flow, washable, premium air filter
  • 100mm MAF (Mass Air Flow) tube/housing
  • Unique high flow fuel rail with 47lb injectors
  • 75mm pulley
  • To be downloaded using the ROUSH Diagnostic Tool (RDT) software.
  • 2011-2014 Ford F-150 6.2L-2v engine
  • 3 Year/36,000 Mile Parts warranty included (ROUSH Supplied Parts Only)
  • NOW 50 State legal emission on 2011-2014 / CARB E.O.# D-418-23

  This F-150 Supercharger Kit by ROUSH® delivers 590 HP and 590 LB/FT of torque to the 2011-2014 Ford F-150 6.2L-2v V8 powertrain, an increase of 179 HP and 156 FT/LB over stock.

  The ROUSH 2011-2014 6.2L F-150 Phase 2 Calibrated Supercharger Kit is part of the TVS (Twin Vortices Series) line of superchargers developed by ROUSH that have raised the bar for performance and reliability. This is the same line that has been used and proven for years in ROUSH-built vehicles.

  The ROUSH R2300 supercharger features Eaton's new cutting edge Twin Vortices Series technology (TVS) rotating assembly that delivers more power and better fuel economy in a smaller package for uncompromising performance.

  The ROUSH R2300 TVS supercharger is a roots-type, positive displacement supercharger that features twin four-lobe rotors that are twisted 160-degrees.

  By comparison, the original Eaton rotating assembly featured three lobes twisted 60 degrees. The fourth lobe and added twist, when combined with NEWLY redesigned air inlet and outlet ports, greatly enhance thermal efficiency, deliver higher volumetric capacity, enable higher operating speeds, creates a smoother, more efficient flow of air into the engine and has improved noise and vibration characteristics.

  Unlike turbo-charging or centrifugal superchargers, the ROUSH R2300 TVS supercharger provides instant throttle response and can generate increased power through the engine's entire powerband.

  The primary components of this ROUSH R2300 TVS Supercharger Kit include:

  This part now utilizes the ROUSH Flash Voucher card to be calibrated using ROUSH Diagnostic Tool (RDT) software and pass-thru device. If you do not have access to an approved pass-thru device, you can send your PCM back to ROUSH to be flashed for an additional $100.00 fee.

  Warranty

  This kit is protected by an extended parts warranty (ROUSH Supplied Parts Only), which is for 3 years or 36,000 miles from retail purchase date.

• Condition: New
